0.3w 1.8GHz RJ45 Face Recognition Attendance System

    Buy cheap 0.3w 1.8GHz RJ45 Face Recognition Attendance System from wholesalers

    Buy cheap 0.3w 1.8GHz RJ45 Face Recognition Attendance System from wholesalers
    • Buy cheap 0.3w 1.8GHz RJ45 Face Recognition Attendance System from wholesalers
    • Buy cheap 0.3w 1.8GHz RJ45 Face Recognition Attendance System from wholesalers
    • Buy cheap 0.3w 1.8GHz RJ45 Face Recognition Attendance System from wholesalers
    • Buy cheap 0.3w 1.8GHz RJ45 Face Recognition Attendance System from wholesalers
    • Buy cheap 0.3w 1.8GHz RJ45 Face Recognition Attendance System from wholesalers
    • Buy cheap 0.3w 1.8GHz RJ45 Face Recognition Attendance System from wholesalers

    0.3w 1.8GHz RJ45 Face Recognition Attendance System

    Ask Lasest Price
    Brand Name : SCANMAX
    Model Number : F2-FHS
    Certification : CE, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, Paypal
    Supply Ability : 200PCS/Week
    Delivery Time : Within 5 working days after receiving the balance
    • Product Details
    • Company Profile

    0.3w 1.8GHz RJ45 Face Recognition Attendance System

    F2-FHS Android Face Recognition Attendance System with QR Code and IC Card


    Features
    *Dynamic detection, solve the deception of photos on various carriers
    *Recognition Height:1.2-2.2m
    *Recognition Distance:0.3-1.2m
    *Detection Rate:1-2sec/person-time
    *Precision:± 0.5 ℃
    *Support external QR code scanner, ID card reader
    *Support RS232 serial port, Wiegand 26 output, support configuration of output content
    *Adopting dynamic face detection and tracking recognition algorithm based on video stream
    *Support storage of 30,000 libraries locally;
    *Fast recognition:
    *(a)Face tracking and detection takes about 20ms
    *(b)Face feature extraction takes about 200ms
    *( c) The live detection face comparison takes 0.6ms (1000 people library, average value for multiple recognition), 0.8ms (10000 people library, average value for multiple recognition)
    *Support public network and local area network
    *Support HTTP interface connection;
    *Support screen display content configuration, status display, custom content display, custom broadcast conten


    F2-FHS Facial Recognition Temperature Measure Device Datasheet-EN
    Product Specification with Infrared and RGB Camera

    Face Recognition Temperature Measure all-in-one Machine
    Product modelF2-FHS

    Characteristics

    Main functionFace recognition temperature measurement
    Use environmenIndoor , semi-outdoor
    ColorSilver

    Camera

    TypeRGBInfrared
    Resolution2 million pixels2 million pixels
    ApertureF2.8F2.8
    Focal length3.18mm3.18mm

    Software

    Dynamic


    automatic


    automatic

    Vertical wide

    angle


    84°


    84°

    Horizontal wide

    angle


    54°


    54°

    Infrared

    supplement light

    Support

    White

    supplement light

    Support

    Core parameters

    AndroidAndroid7.1
    CPUQuad-core, 1.8GHz
    storage capacityRAM 2G ROM 8G

    Human-comput er interaction


    Monitor

    8 inches, full viewing angle, 170 ° IPS LCD screen, resolution

    800 * 1280

    Touch screensupport

    Face sensing

    module

    support

    Face temperature measurement

    module


    support,Serial / I2C interface

    Card readerSupport, Optional

    Communication

    method

    Ethernet10/100 Ethernet
    WIFIComply with IEEE802.11b / g / n standard (2.4G)

    Identification Method

    FaceSupport
    IC cardSupport, optional

    Input output interface

    RJ45 interfaceSupport 10/100 Mbps

    Power supply

    interface


    DC12V-2A

    PowerAdapterDC12V-2A

    Environmental requirements

    Operating

    temperature

    -20℃~60℃

    Working

    humidity


    20%~90% (non-condensing)

    Static protection

    level


    IEC61000-4-2, LEVEL3

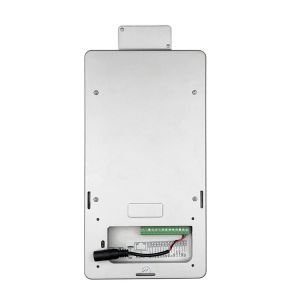

    External Interface Definition
    TypeInterfaceExplanation
    USBUSB 2.0Support
    Ethernet portRJ4510/100 Ethernet

    Relay


    NC COM NO

    Relay normal off/Common/normal on.Usually,door lock supply is positively connected to the COM port,and then according to the door lock type,relay power negatively connected NO port or NC

    port. Note: Maximum load of relay contact is 2A


    Gate sensor

    IN

    GND


    Check door open/close status, input

    Exit

    button

    PUSH1

    GND


    Press the button,door opening control signal,input


    Serial

    RX

    TX


    RS232


    Output power

    5V

    GND


    Support device external output 5V


    Wiegand

    WG_D1 WG_D0

    GND


    Wiegand output interface, support 26bit / 34bit protocol


    Input power

    GND

    12V+

    Power input:12V DC

    Temperature measurement module

    Operating temperature

    0℃ ~ +55℃

    Storage temperature

    -20℃ ~ +65℃

    Power consumption

    < 0.3w


    Basic Parameters


    Pixel


    32*32 Real-time temperature output

    Measurement accuracy

    I + 0.5℃

    Measuring distance

    0.3 ~ 1.0m


    WIFI


    2.4G 802.11b/g/n


    Bluetooth


    BluetooH4.0
