Description:
SM-8288A RFID reader could be applied in various harsh working
environment for multiple protocol compatible and reading fast. Full
support the tag of ISO-18000-6C or ISO-18000-6B. Its stable reading
distance is 15m (related to the tag and environment), it has a
beautiful shape.
Fixed UHF RFID Reader Features:
1. A shape of linear, the LED will light when read a tag.
2. Could used in some very cold area, such as northeast and
northwest, because its ability of lighting-resisting and lower
temperature protection.
3. The output power is 30dbm, support multi work modes (auto,
command, triggering).
4. Applied in various application: vehicle and entrance guard,
electronic free collection, logistic management and production
automatic.
5. Can connect with the device which has W26 and W34 interface, no
need to develop.
6. Wake up tags: tag only be waked up when communicate with reader,
prevent the disturbing from other tags, ensure the correct
information between reader and system's tag.

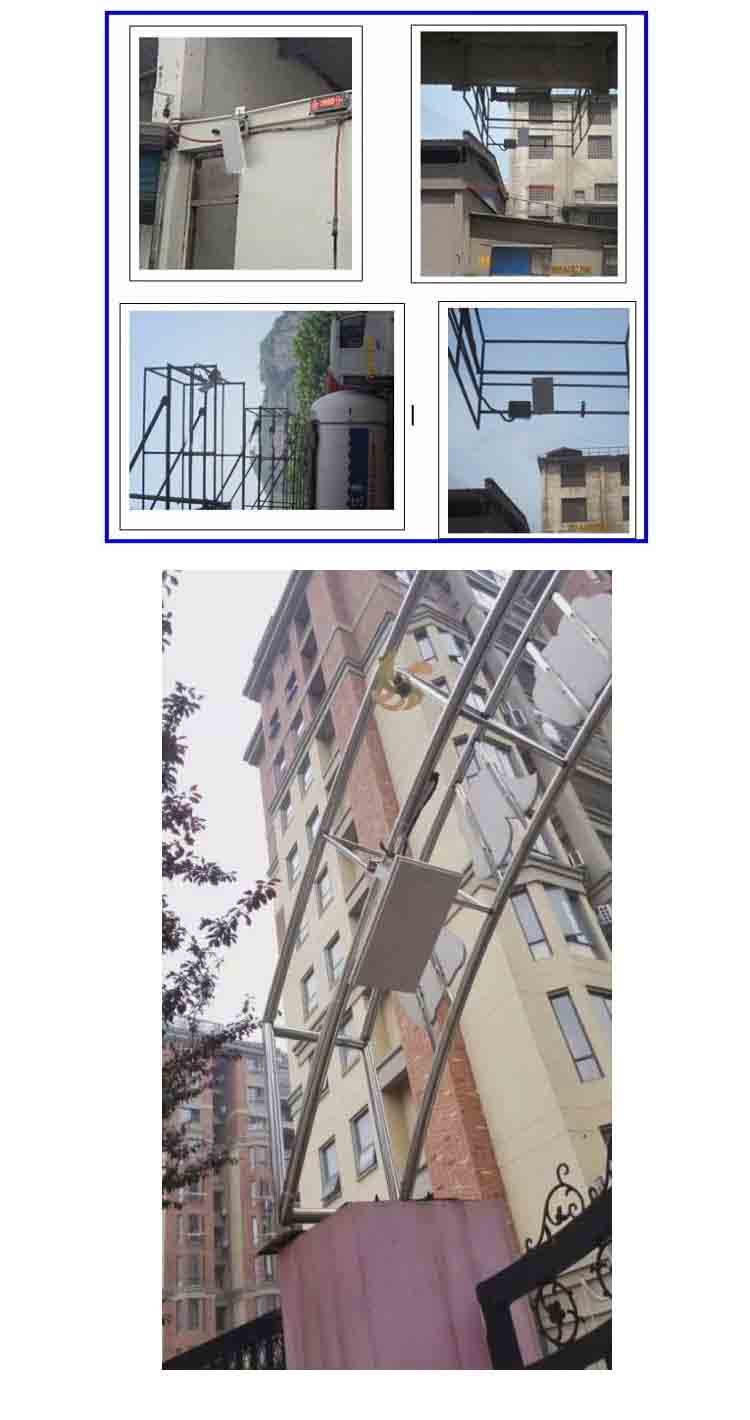

Mainly Application as Follows:
1. Parking management: Long range intelligent parking management
and automatic charge without stop the car.
2. Production line management: Goods identification for production
flow.
3. Auto Access control: Long range access control management for
custom, sea port.
4. Logistics and warehouse management.
5. People auto registry for important meeting or exhibition.
6. Automatic weighing and data capture.
Product Parameters:
| Performance parameters |
| Working Frequency | 902~928 MHz or 865~868MHz |
| Protocol | ISO18000-6C(EPC C1 GEN2) |
| Radio frequency power | 0dBm～30dBm(Adjustable) |
| Software & SDK | DEMO and C#, VC, VB, Java, DELPH, etc., |
| Encryption | Can be directly encrypted, copy prevention. |
| Reading range | stable reading range 12~15M (Depends on tag&environment) |
| Industrial lightning protection | 6000V industrial lightning protection |
| Low temperature protection | Northeast, Northwest extremely cold region, low temperature
protection |
| Frequency modulation way | Broad spectrum frequency hopping or fixed frequency |
| Input/output port | Two-way relay output(customized), one-way trigger input |
| Antenna gain | 10dBi polarization |
| Working way | Buzzer & LED |
| Power | 12V/3A Adaptor |
| Physical parameters |
| Item size | 420x240x50mm |
| Package size | 600x310x110mm |
| Net weight | 4KG |
| Shell material | ABS |
| Working temperature | -20℃~+65℃ |
| Storage temperature | -45℃~+95℃ |
