Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install

    Buy cheap Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install from wholesalers

    Buy cheap Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install from wholesalers
    • Buy cheap Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install from wholesalers
    • Buy cheap Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install from wholesalers
    • Buy cheap Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install from wholesalers
    • Buy cheap Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install from wholesalers
    • Buy cheap Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install from wholesalers
    • Buy cheap Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install from wholesalers

    Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : LV2097
    Certification : CE, RoHS,FCC
    Price : Negotiation
    Payment Terms : Western Union, T/T, Paypal
    Supply Ability : 5000 PCS/ month
    Delivery Time : Within 5 working days after receiving the balance
    • Product Details
    • Company Profile

    Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install

    Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install

    With the help of bar code recognition technology, the functional content of various handheld terminals and other applications has become more and more abundant. For example, in supermarkets, we can see that the staff can identify the screen payment code through the red light bar code scanner module embedded in the portable POS device to meet the needs of expanding the comprehensive cashier of merchants; For bar code identification on commodity labels, staff can complete accurate and efficient inventory through the embedded scanning module of handheld devices, reduce manual inventory time and improve efficiency.

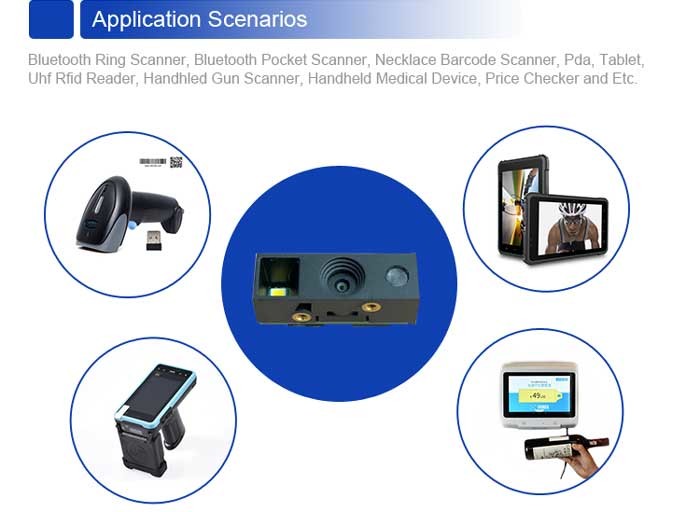

    1) The barcode scanning head is embedded in the medical tablet/medical device to facilitate the mobile rounds;
    2) The barcode scanning head is embedded in the portable tablet and applied to the station/scenic entrance ticket;
    3) Barcode scanning head embedded in Android industrial tablet for warehousing/logistics management, realizing fast inventory;
    4) Bar code scanning head embedded in the flat panel is applied to the invoicing, ordering meeting and other industry requirements of the store counter;
    Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy installMini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy installMini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy installMini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install

    PerformanceImage Sensor640 480 CMOS

    Illumination
    Aiming

    White LED
    Red LED (625nm)

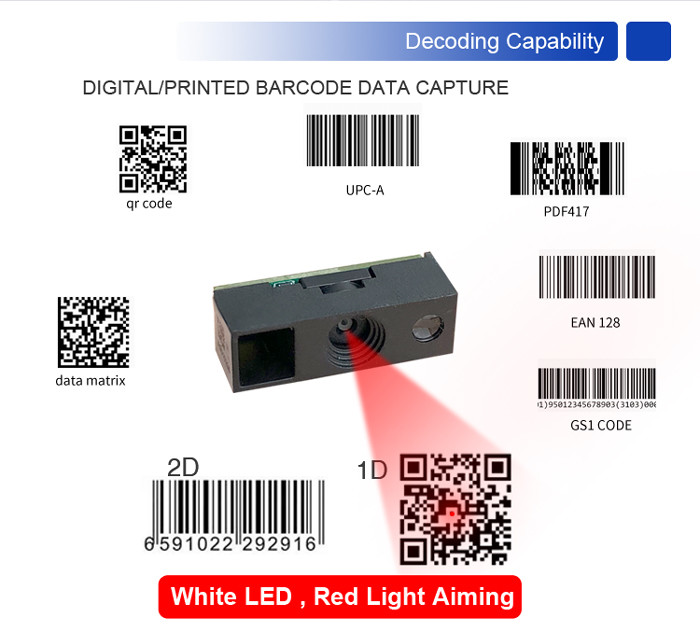

    Symbologies2DPDF417, QR Code, Micro QR, Data Matrix.
    IDCode 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM 128, Plessey, MSI-Plessey
    Resolution*>3mil
    Typical Depth of Field*

    EAN-13 (13mil): 60mm-350mm
    Code 39 (5mil): 40mm-150mm
    PDF417 (6.7mil): 50mm-125mm
    Data Matrix (1 Omil): 45mm-120mm
    QR Code (15mil): 30mm-170mm

    Min. Symbol Contrast*25%
    Scan AngleRoll: 360.,Pitch: ±60°, Skew: ±60°
    Field of ViewHorizontal 42°, Vertical 31.5°
    Mechanical/InterfaceTTL-232, USB
    ElectricalOperating Voltage3.3VDC±5%
    Current@3.3VDCOperating138mA (typical)
    Idle11.8mA

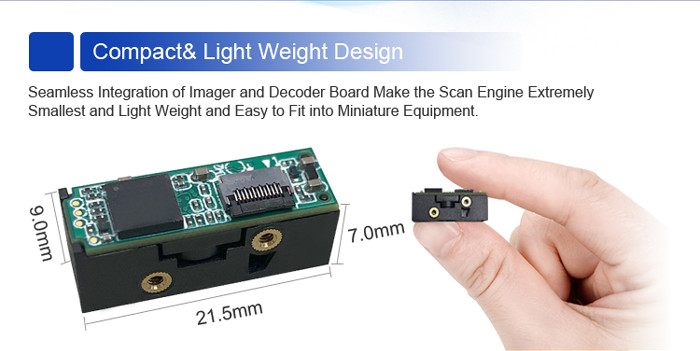

    Dimensions21.5(W) X9.O(D) x7.0(H)mm (max)
    Weight1.2g
    EnvironmentalOperating Temperature-20°C to 55°C
    Storage Temperature-40°C to 70°C
    Humidity5% to 95% (non-condensing)
    Ambient Light0~100,OOOlux (natural light)
    CertificationsFCC Parti 5 Class B,CE EMC Class B, RoHS2.0, IEC62471
    AccessoriesEVK-N1Software development board for the NLS-N1, equipped with a trigger button, beeper and RS-232 & USBType-C interfaces.
    Cable

    USB Used to connect the EVK-N1 to a host device.
    RS-232 Used to connect the EVK-N1 to a host device.
