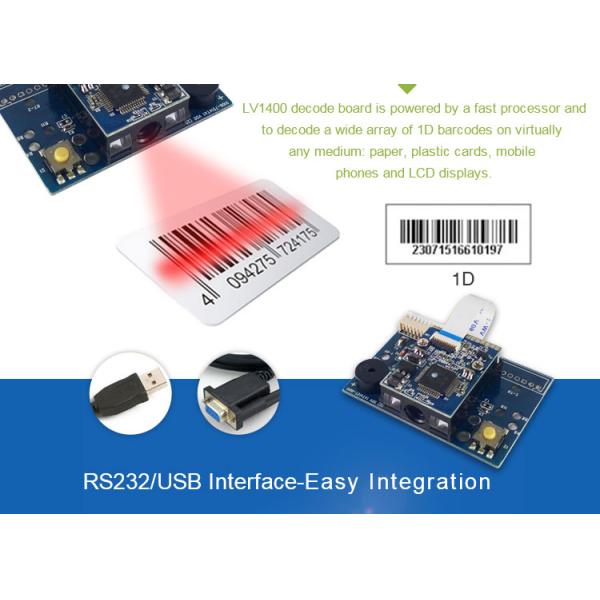

LV1400 is a sort of embedded 1D CCD barcode scanner module.This module uses the domestic leading CCD imaging technology with
USB,TTL-RS232, PS2 interface, support manual 1D codes. The module
is special for OEM application with 32CPU processor can up to
300scans.Compact size can easily be embedded to all kinds of
equipment, integration component to increase the stability and
reliability.
Characteristic
1. Linear barcode scanning: Fast and easy to scan print code, paper
code, screen code. It even has great performance for damaged,
clumped, stain codes have great performance.
2. Compact design: With less than 12MM height, the module can be
easily embedded to equipment .
3.Multiple interfaces: Manual USB port, TTL-RS232, PS2, support POS
machine and Android system.
4. Integration: High quality CPU ensures fast and accurate scans
LV1400
Datasheet.pdf
| Device Weight | <6g |
| |
| Device Dimension | 26.5mm L* 20mm W * 11.5mm H |
| |
| Cable Length | 1500mm(optional) |
| |
| Interface | KB (PS/2 ) |
| |
| Connector | FFC 12pin pitch 0.5 |
|
| Performance parameters |
| Light source | visible 632nm red light |
| |
| Image Sensor | Linear CCD Sensor |
| |
| Processor | ARM32-bit |
| |
| Depth of field | 3-50CM |
| |
| Resolution | ≥3mil/0.1mm@PCS90% |
| |
| Print Contrast | 25%PCS |
| |
| Work Voltage | DC 3.3-5V |
| |
| Electriccurrent | 110mA(work)；30mA(stand by) |
| |
| Image Resolution | 2500dpi |
| |
| Ambient illumination | 100,000Lux Max |
| |
| EAN-8, EAN-13, Codabar, CODE 11, CODE 39, CODE 93, CODE128,China |
| Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, |
| Decode Capability | ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2
of 5, MSI, |
| Plessey, ITF14. |
|
|
| Environmental parameters |
| Operating Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Relative humidity | 5% to 95%(Non-condensing) |
| Drop test | 1.2meter,100times |
| Shock resistance | 10H@125RPM |
Advantage Of Barcode Scanner Module
1. Support 2D/1D barcode and support screen and paper barcode
2. 1GHz 32 bits CPU,high speed for data processing.
3. Temperature resistance can reach 105℃,long service life.
4. Small size, powerful and easy to integrate in industrial
equipment.
5. It supports 2nd development,multiple development language,also
SDK.
6. Highly cost-effective,highly sales volume.
7. We can offer the FFC flat cable for free and 12pin connector if
client needed.
8. We can offer test board and USB cable for sample testing.
