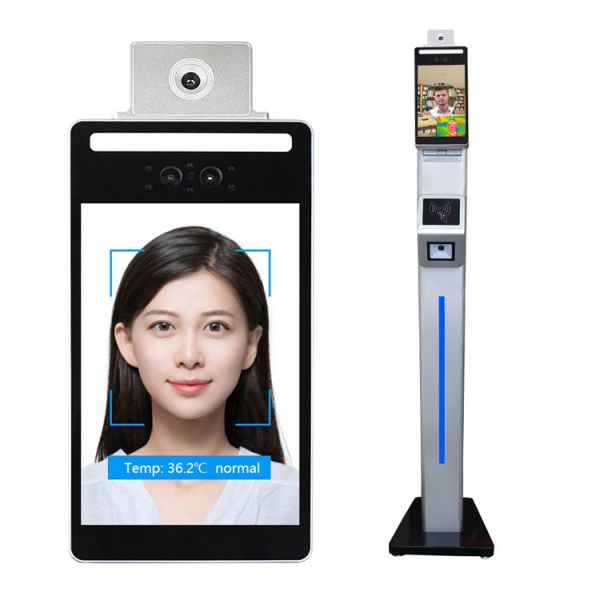

Face Recognition and Temperature Measure Device with MTK to Measure Forehead Temperature

F3-M34-F Facial Recognition Temperature Measure Device Datasheet

Facial Thermal Camera Sensor​ Features
*Dynamic detection, solve the deception of photos on various carriers
*Recognition Height:1.2-2.2m
*Recognition Distance:0.3-1.2m
*Detection Rate:1-2sec/person-time
*Precision:± 0.5 ℃
*Support external QR code scanner, ID card reader
*Support RS232 serial port, Wiegand 26 output, support configuration of output content
*Adopting dynamic face detection and tracking recognition algorithm based on video stream
*Support storage of 30,000 libraries locally；
*Fast recognition:
*(a)Face tracking and detection takes about 20ms
*(b)Face feature extraction takes about 200ms
*( c) The live detection face comparison takes 0.6ms (1000 people library, average value for multiple recognition), 0.8ms (10000 people library, average value for multiple recognition)
*Support public network and local area network
*Support HTTP interface connection;
*Support screen display content configuration, status display, custom content display, custom broadcast conten

Product Parameters

F3-M34-F Face Recognition Access Control Terminal
Model No.		F3-M34-F
Display		8 inches, Full Viewing Angle, 170IPS LCD Screen
Screen Resolution		800*1200
Camera	Type	RGB	Thermal Imaging
	Resolution	2 Million Pixels	256*192
	Aperture	F2.8	F2.8
	Focal Length	3.18mm	3.18mm
	White Balance	Automatic	Automatic
	Wide dynamic	Support	Support
	Vertical Wide Angle
	Horizontal Wide Angle
Basic Specification	Operating System	Android9.0 or above
	Power Supply	DC12V(±10%)3A
	Power Consumption	15w MAX
	Relative Humidity	0%¨ 90%(In the State of Non-condensing Drops)
	Operating Temperature	5℃-50℃
	IP Grade	IP55(Wall Mounting, Water is Not Allowed at the Junction with the Outlet Box, and a Ceiling Can Be Added)
	Working Environment	Indoor and Outdoor (with sunshade) Environment (no wind and direct sunlight)
	Size	275.2MM*123.2MM*30.2MM
Hardware Configuration	Recognition Method	¨Face Recognition
		¨Mifare Card(Optional)
		¨IC Card(Optional)
	Face Recognition Parameters	Face Verification Accuracy >99%
		¨Face Recognition Distance 0.5m-1.5m
		¨Card Verification Time 600MS
		Local Storage 30000 faces
	Interface	Micro USB 1pc
		RJ45 Gigabit Network 1pc
		Relay Output
		Wiegand Interface
		RS-232
		Door Contact
		Exit Switch
		Power Supply
	White Fill Light	Support
	Indicator Light	Support Green Light for Authentication Success and Red Light for Authentication Failure
	Speaker	Dual Speakers, 1.0w
	Microphone	Non-noise Reduction
Basic Parameters	WIFI	2.4G 802.11b/g/n
	Bluetooth	BluetooH 4.0
Temperature Measurement Module	Operating Temperature	5℃ ~ +50℃
	Operating Temperature	-20℃ ~ +55℃
	Power consumption	< 0.3w
	Pixel	256*192 Real-time Temperature Output
	Measurement Accuracy	± 0.5℃
	Measuring Distance	0.3 ~ 1.0m
MTK Motherboard	Chip	Octa-core A73
	Operating System	Android9.0
	RAM	2GLPDDR4
	Storage	16GB eMMC
	Power Input	12V/2A
	Display	MIPI DSI Maximum Support Resolution 2400 * 1080
	WIFi	2.4GHz and 5GHz;802.11a/b/g/n/ac
	USB	Micro USB Type A Host*1;Micro USB Type A Device*1 USB 2.0 Host*2(1.25mm wafer)
	Microphone	2W*2 Speaker output
