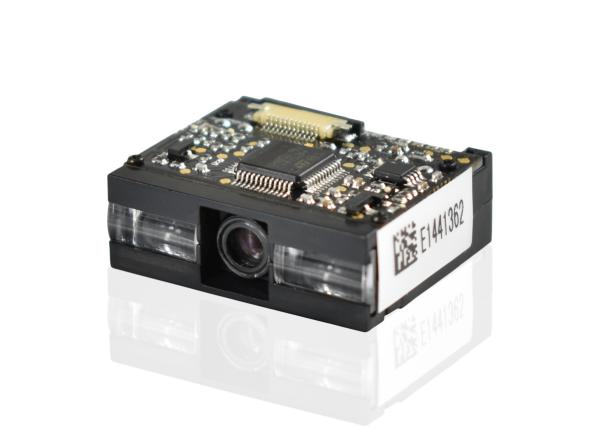

    CCD 1D Barcode Scanner Module LV1000 OEM Scan Engine Design TTL232 Interface For PDAs

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : LV1000
    Certification : FCC,CE,Rosh
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 10000 per month
    • Product Details
    • Company Profile

    CCD 1D Barcode Scanner Module LV1000 OEM Scan Engine Design TTL232 Interface For PDAs

    Product Introduction:
    Designed for OEM applications, this high performance CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, PDA's and many more.Also codabar read swift.


    Product Features:
    1) Highly integrated
    Compact and highly integrated desing, image capture device with decoder on the same board.Small form factor features an easy installation and variety of usuages.

    2) Advance Technology
    Thanks to the core-technology uIMG .Independent designed and manufactured by Rakinda Technology includes the optical, CMOS, digitizer, decoder, image processing & embedded systems. Supports all global standard 1D barcode symbologies. Reading performance reaches global standard.By using accessories provided, scan all kinds of barcodes defined by customers.

    3) Intelligent Focus
    Advanced optical focusing system which senses the ambient environment and adjusts the optical automatically for a quick reading response.


    Application Scenarios
    Designed for OEM applications, this high performance barcode scan engine caneasily be integrated into various solutions such as kiosks, ticketing machines,PDAs and many more.


    LV1000_datasheet_en.pdf

    Performance
    InterfaceTTL232/USB-KBW
    Image SensorCCD
    Resolution2500
    Scan Rateup to 300 scans/sec
    Decode Rate200 decodes/sec (default)
    SymbologiesCode128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, etc.
    Precision≥ 5mil (Condition: PCS=0.9, testing code: Code 39)
    Light SourceLED(622 nm - 628 nm)
    Light Intensity265 LUX (130 mm )
    Depth of Scan Field40mm-430mm
    Print Contrast Signal≥ 30%
    Sensitivity**Pitch±65°@ 0°Roll and 0° Skew
    Roll±30°@ 0°Pitch and 0° Skew
    Skew±60°@ 0°Roll and 0° Pitch
    Illumination0 ~ 100,000 LUX
    Mechanical/ Electrical
    Power Consumption0.33W
    VoltageDC 3.3 V
    CurrentWorking150mA(Max)
    Idle45mA
    Sleep1 mA
    Weight6g
    Environment
    Operate Temperature-20℃ - +60℃
    Storage Temperature-40℃ - +85℃
    Humidity5% - 95% ( non-condensing )
    Certificates
    FCC Part15 Class B, CE EMC Class B
    Accessories
    Evaluation KitThe Evaluation Kit for EM1300, with trigger, beep functions and USB, RS232 interfaces.
    Flex CableRS232 CableThis cable connect to the RS232 port of EVK1300.
    With a standard female RS232 port to connect to standard male RS232 port.
    With a power port to accept power adapter supply.
    USB CableThis cable connects to the USB Slave port of LV1000 with a USB-B male port. With a standard USB Slave port to connect to standard USB Host port.
    Power AdapterThe power adapter for EVK1300 by RS232 Cable.
    Output: DC5V, 2A; Input: AC100~240V, 50~60HZ
    **Test Condition:
    Code39: 3 Bytes ; Resolution = 10mil; W:N = 3:1 ; PCS = 0.8 ;
    Barcode Height = 11mm; Distance = 120mm; T=23°C; Illumination= 200 LUX

    Q: How long is your warranty time:
    A: 1 Year.
    Q: Where can we download the user manual of the scanners?
    A: We will send by email after you get samples.
    Q: What's the lead time?
    A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
    Q: Can you provide OEM service?
    A: Yes. We need further discuss about details.
    Q: How do you ship the scanners usually?
    A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
