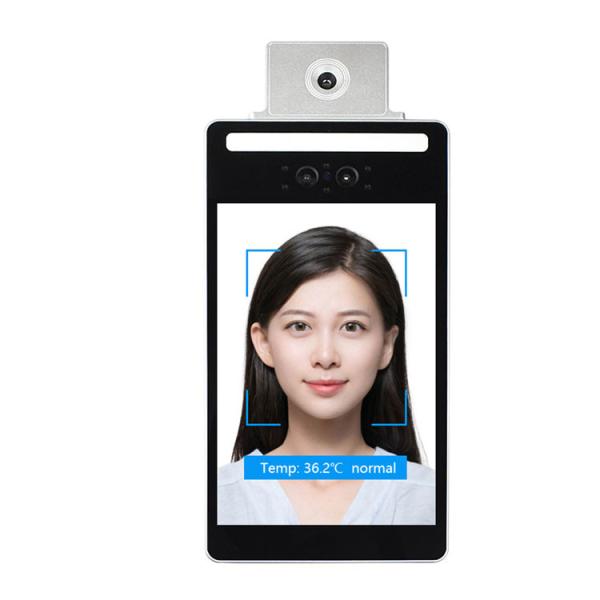

Contactless Face Recognition Temperature Measuring Machine With MTK Board

8inch Face Infrared Facial Recognition with Thermal Temperature Measurement with MTK Board

As a result of this epidemic, many regions have strengthened the management of closed (semi-closed) places, This means that entering certain closed or semi-closed places (such as libraries, museums, hotels, theaters, conventions and exhibitions, wholesale markets and other key places, schools, senior care institutions, medical institutions, government service halls and other key institutions) must Entrance by checking face mask and temperature measurement is fully implemented, and the method of "face mask + temperature measurement verification" is adopted to achieve full coverage verification in gatherings, closed places and key institutions.

The core features of F3-M34-F Facial Recognition with Temperature Measurement as follows:
a Face recognition and temperature detection, non-contact safer
b Not wearing a mask, warning of abnormal body temperature
c.Health code check, after swiping the face and measuring the temperature, the health code will be displayed and the code will pass, and the health code will alarm
d Face access control, the access control system is linked in and out while scanning the face and measuring the body temperature
e Check-in and attendance, replacing the risk of contact cross-infection caused by traditional fingerprint check-in machines
f Real-time generation of body temperature records, attendance data, data management and traceability in the background
g Comparison of personal identification, black and white list confirmation and alarm to detect intruders or missing persons

Flexible deployment and wide application. Support wifi, network cable and other networking methods, optional column, wall, gate installation methods, flexible deployment to a wide range of application scenarios

Application scenarios: Office buildings/residential areas, schools/educational institutions, medical institutions/elderly care institutions, libraries/museums, hotels/wholesale markets, stations/ports, banks, building property service centers, government service halls, etc. Closed or semi-closed place.

This product is very mature and hot sale, which already have exported a lot to foreign countries, such as Israel, Serbia, Italy, Chile, etc. And customer can developed his own application based on our SDK and API. And our engineer is very professional and can communication with customer directly.

F3-M34-F Facial Thermal Image Device

F3-M34-F Face Recognition Access Control Terminal
Model No.		F3-M34-F
Display		8 inches, Full Viewing Angle, 170IPS LCD Screen
Screen Resolution		800*1200
Camera	Type	RGB	Thermal Imaging
	Resolution	2 Million Pixels	256*192
	Aperture	F2.8	F2.8
	Focal Length	3.18mm	3.18mm
	White Balance	Automatic	Automatic
	Wide dynamic	Support	Support
	Vertical Wide Angle
	Horizontal Wide Angle
Basic Specification	Operating System	Android9.0 or above
	Power Supply	DC12V(±10%)3A
	Power Consumption	15w MAX
	Relative Humidity	0%¨ 90%(In the State of Non-condensing Drops)
	Operating Temperature	5℃-50℃
	IP Grade	IP55(Wall Mounting, Water is Not Allowed at the Junction with the Outlet Box, and a Ceiling Can Be Added)
	Working Environment	Indoor and Outdoor (with sunshade) Environment (no wind and direct sunlight)
	Size	275.2MM*123.2MM*30.2MM
Hardware Configuration	Recognition Method	¨Face Recognition
		¨Mifare Card(Optional)
		¨IC Card(Optional)
	Face Recognition Parameters	¨Face Verification Accuracy >99%
		¨Face Recognition Distance 0.5m-1.5m
		¨Card Verification Time 600MS
		Local Storage 30000 faces
	Interface	Micro USB 1pc
		RJ45 Gigabit Network 1pc
		Relay Output
		Wiegand Interface
		RS-232
		Door Contact
		Exit Switch
		Power Supply
	White Fill Light	Support
	Indicator Light	Support Green Light for Authentication Success and Red Light for Authentication Failure
	Speaker	Dual Speakers, 1.0w
	Microphone	Non-noise Reduction
Basic Parameters	WIFI	2.4G 802.11b/g/n
	Bluetooth	BluetooH 4.0
Temperature Measurement Module	Operating Temperature	5℃ ~ +50℃
	Operating Temperature	-20℃ ~ +55℃
	Power consumption	< 0.3w
	Pixel	256*192 Real-time Temperature Output
	Measurement Accuracy	± 0.5℃
	Measuring Distance	0.3 ~ 1.0m
MTK Motherboard	Chip	Octa-core A73
	Operating System	Android9.0
	RAM	2GLPDDR4
	Storage	16GB eMMC
	Power Input	12V/2A
	Display	MIPI DSI Maximum Support Resolution 2400 * 1080
	WIFi	2.4GHz and 5GHz;802.11a/b/g/n/ac
	USB	Micro USB Type A Host*1;Micro USB Type A Device*1 USB 2.0 Host*2(1.25mm wafer)
	Microphone	2W*2 Speaker output

QUALITY CONTROL
Our QC procedure and testing details are as following: Incoming material/component inspection (IQC) -- Quality inspection on production line (LQC) -- In-process quality control (IPQC)(several IPQC process) -- Final quality control (FQC) -- After packing inspection (QA) –- Shipment
QUALITY CONTROL
Our QC staffs have rich experience and are equipped with advanced equipment. In addition, our R&D department provides technical support to the entire production process. Besides strict supervision at every single stage of production, all the effort we are making is to ensure that our customers receive qualified products. The main goal of our organization is customer satisfaction through top-level product quality and continuous improvement of the service offered to our customers.
QUALITY CONTROL
Our aim of "your satisfaction, my pursuit" always remind us that quality is of key importance to provide customer satisfaction. Committed to providing customers with competitive prices, reliable quality, timely delivery, and good service, we wish to establish long-term business relationships with customers and friends all over the world. We manufacture and develop each product with heart and provide considerate service for you. Rakinda is always with you.

FAQ
Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q: Can you provide OEM service?
A: Yes. We need further discuss about details.
Q: How do you ship the scanners usually?
A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.

Good Comments for Facial Recognition with Temperature Measurement

Service Advantages

1.Professional service team, all-round one-to-one person follow-up.
2.Provide professional development kits to help customers solve various related software and hardware developing issues.
3.Two-year quality assurance, life-long maintenance and 24-hour service hotline guarantee the customers' interest.

We create a bright future with hand in hand and implement the business philosophy of customer first. Through continuous exploration and innovation, we aim to achieve win-win cooperation with customers in near future together!

Quality Advantages

1. The products are certified by CE of EU, FCC of USA and RoHS, and the quality is guaranteed.
2. Product components adopt international brand to ensure quality.
3. After 100% strict sampling inspection before products shipment, customers can take goods delivery with no worries at all.
