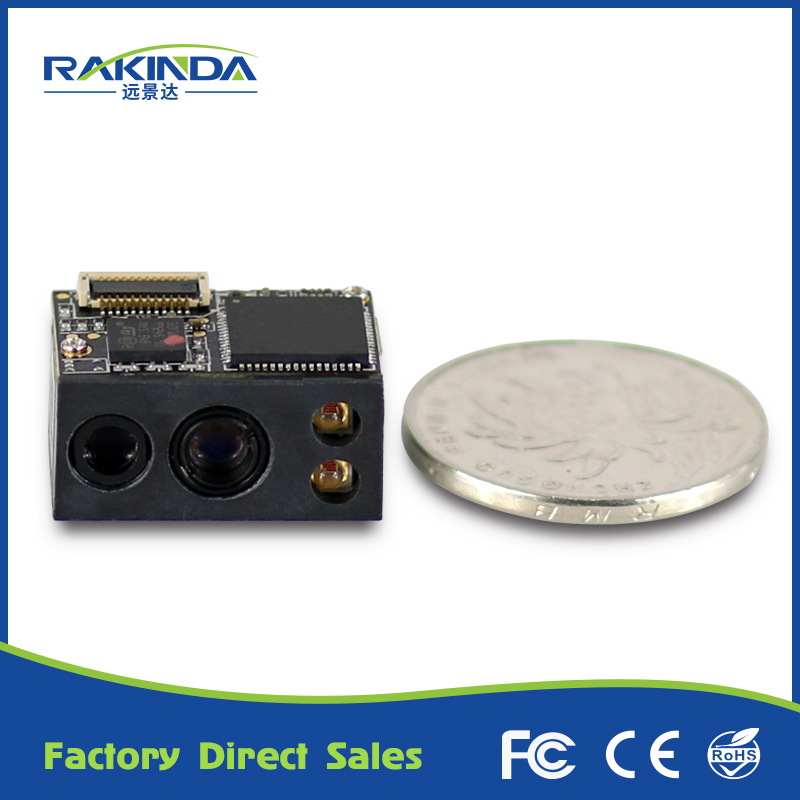

    Lightweight Arduino Barcode Scanner Module LV3096 5mil Reading Precision

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : LV3096
    Certification : CE, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 1000 PCS/ week
    Delivery Time : within 5 working days after receiving the balance
    • Product Details
    • Company Profile

    Lightweight Arduino Barcode Scanner Module LV3096 5mil Reading Precision

    Lightweight Arduino Barcode Scanner Module LV3096 5mil Reading Precision​


    1. The LV3096 OEM scan engine, a computerized image recognition system, brings about a new era of 2D barcode scan engines.


    2. The LV3096’s 2D barcode decoder chip ingeniously blends UIMG technology and advanced chip design & manufacturing, which significantly simplifies application design and delivers superior performance and solid reliability with low power consumption.


    3. The LV3096 supports all mainstream 1D as well as PDF417, QR Code ( M1/M2/ Micro), Data Matrix and GS1-DataBar TM (RSS) (Limited/ Stacked/ Expanded versions).


    Technical Specifications of LV3096 2D Barcode Scanner Module


    Lightweight Arduino Barcode Scanner Module LV3096 5mil Reading Precision

    Performance
    Image Sensor752×480 CMOS
    IlluminationRed LED 625±10 nm
    Symbologies2DPDF417, QR Code (Model 1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140)
    1DCode 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.
    Reading Precision≥ 5mil
    Depth of FieldUPC-A (13mil)55mm - 270mm
    Code 39 (20mil)50mm - 340mm
    PDF 417 (6.67mil)70mm - 165mm
    Data Matrix (10mil)55mm - 180mm
    QR Code (20mil)35mm - 275mm
    Symbol Contrast≥ 30%
    Scan AngleRoll: 360°; Pitch: ±50°; Skew: ±50°
    Field of ViewHorizontal 36°; Vertical 23°
    Mechanical/Electrical
    InterfaceTTL-232, USB (HID-KBW, USB COM Port Emulation, DATAPIPE, HID-POS)
    Operating Voltage3.0 ~ 3.6VDC
    Current @ 3.3 VDCOperating Current230mA
    Sleep Current40mA
    Dimensions21.17(W)×14.6(D)×11.52(H)mm
    Weight4.4g
    Environmental
    Operating Temperature-20℃ to +60℃
    Storage Temperature-40℃ to +80℃
    Humidity5% to 95% (non-condensing)
    Ambient Light0 ~ 100000 lux (natural light)


    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?

    A1: Of course, but samples are not free.

    Q2: What's the delivery time?

    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.

    Q3: What about payment?

    A3: Payment terms: T/T,West Union and L/C etc.

    Q4: Can you list the product of your company?

    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.

    Q5: What's the OS of the POS?

    A5: Android and Windows,details please refer to the technical data of the Product.

    Q6: Where can we download the SDK/user manual for some of your products?

    A6: SDK/User manual will be sent to you by email after the sample order.

    Q7: Warranty time?

    A7: 1 year

    Q8: Do you provide Evaluation Kit for testing barcode scanner module?

    A8: Yes, but you need to pay for EVK separately.

    Q9: Product OEM?

    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.

    Q10: Customer service?

    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
