High Sensitive Arduino Barcode Scanner Module 5000 Lux Ambient
Light
1D CCD Module

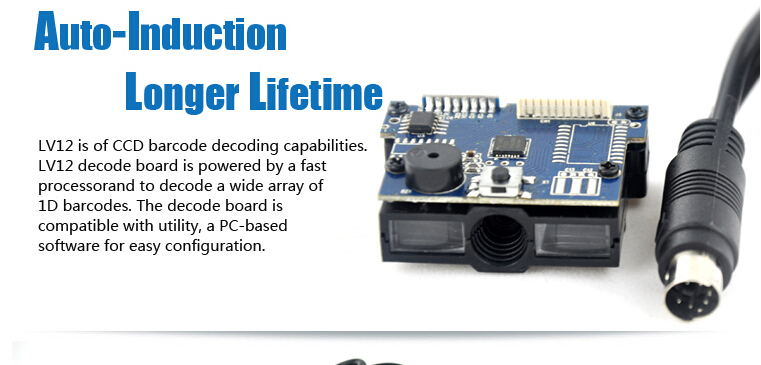

LV12 1D scan engine is a sort of utilitarian embedded barcode
reading engine. Applying to Computerized CCD Image
Recognition System, it ensures the fast scanning and decoding
accuracy on popular 1D barcodes.
This module is specialized to be integrated into OEM equipment to
provide solutions for all kinds of lockers, and medical facilities.
Integrated core components guarantee the reliability and stability
of the product, and decrease the rate of failure of the scanner.
Characteristic
Linear barcode scanning: fast and easy to scan print code, paper
code, screen code, and have nice performance in scanning abrasion
code, fuzzy code and even damaged code
Multiple interfaces support: support
USB,TTL-RS232,RS232,PS2,USB-COM.
USB fast transmission: to improve work efficiency, for better user
experience.
Secondary development: support secondary development, and have been
widely used in all kind of MCU.
Wide application area: apply to all kinds of lockers, MCU
development and for medical and scientific research.
Technical Specifications of LV12 1D scan engine
| Product name | 1D scan engine |
| Item number | LV12 |
| Interface | RS232/ USB/ KB |
| Image Sensor | Linear CCD Sensor |
| Processor Type | C8051 compatible |
| Operating Freq. | 24.5 MHz (Internal) |
| Scan Rate | 100 scans/sec ±10% |
| Reading Distance | 230mm@20mil/0.5mm, PCS90% |
| Print Contrast Ratio | PCS45%@4mil/0.1mm |
| Resolution | 5mil/0.127mm@PCS90% |
| Reading Angle | Test Conditions : Code 39, 10mil/0.25mm, PCS90% |
| Pitch Angle | 5°~70° (±5°) |
| Skew Tolerance | 5°~60° (±5°) |
| Light Source | Visible Red light 632nm LED |
| Ambient Light | 5000 Lux Max. |
| Weight | 17g |
| Dimensions | 44(W)mm*30(D)mm*19.2(H)mm |
| Operating Temperature | 0 ℃ to + 50 ℃ |
| Storage Temperature | -20 ℃ to + 70 ℃ |
| Relative Humidity | 20% - 95% ( non-condensing ) |
| Decode Capability | EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128,China
Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E,
ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2
of 5, MSI,
Plessey, ITF14. |
| Environmental parameters |
| Operating Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Relative humidity | 5% to 95%(Non-condensing) |
| Drop test | 1.2meter,100times |
