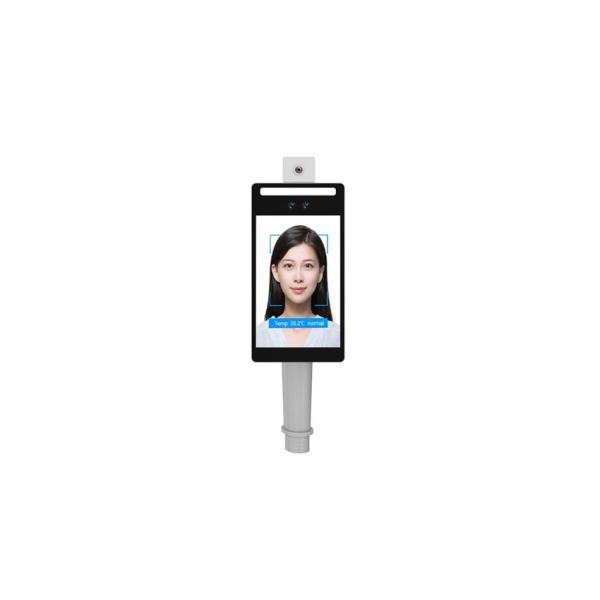

    Long Range Infrared Temperature Measurement ROM 8G Face Recognition Device

    Ask Lasest Price
    Brand Name : SCANMAX
    Model Number : F2-TH
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    • Product Details
    • Company Profile

    Long Range Infrared Temperature Measurement ROM 8G Face Recognition Device

    Face Recognition F2-TH Long-range Infrared Temperature Measurement Product Manual


    Face Recognition Device Features


    • Dynamic dual-camera anti-counterfeiting, completely solve the deception of various photos on various carriers

    • Dual infrared and RGB fill light at night; Infrared temperature measurement, optional mask recognition

    • Support external access control card reader, ID card reader

    • Support RS-485 serial port, Wiegand 26/34 output interface, support relay, door switch, door magnetic output content

    • Support 29,000 people to store historical records locally

    • Support public network and local area network deployment

    • Support HTTP interface connection

    • Support screen display content configuration

    • Support identification distance configuration


    Face Recognition Device Parameters


    Face Recognition Integrated terminal

    Product Model

    F2-TH

    Size

    8 inch, full viewing angle, 170 degree IPS LCD screen

    Screen Resolution

    800*1200


    Camera

    Type

    RGB

    Infrared

    Resolution

    2 million pixels

    Aperture

    F2.8

    Focal Length

    3.18mm

    White Balance

    Automatic

    Wide Dynamic

    Support

    Vertical Wide Angle

    Horizontal Wide Angle


    Basic specifications

    Operating System

    Android7.1 or above

    Equipment Power

    DC12V(±10%)3A

    Equipment Power Consumption

    15w MAX

    Relative Humidity

    0% ¨ 90%(In a non-condensing state

    )

    Operating Temperature

    -20 ~60(Wall-mounted design: the junction with the eight or six boxes is not waterproof, and a ceiling is required)

    Protection Cass

    IP55

    Use Environment

    Indoor/Ourdoor

    Equipment Size

    275.2mm*123.2mm*30.2mm

    Hardware Configuration


    Identification Method

    Brush Face

    Mifare card (optional: external purchase module required)

    Resident ID card (optional: external purchase module required)

    Face recognition parameters

    Face verification accuracy >99%

    Face recognition distance 0.5m-1.5m

    Face ID card comparison time 600MS

    Local capacity 20,000 sheets

    Port

    Micro USB 1pcs

    RJ45 Gigabit 1pcs

    Relay, Wiegand Interface, RS-485,Door Sensor, Door Switch

    Support

    Infrared/White Fill Light,

    Basic Parameters

    Indicator Light

    Support authentication success, Green light prompt; Authentication failure, Red light prompt

    WIFI

    2.4G 802.11b/g/n

    Bluetooth

    Bluetooth4.0

    4G LTE

    Full Netcom (optional: custom purchase required)

    Temperature Measurement Module

    Operating Temperature

    -20℃ ~ +85℃

    Storage

    Temperature

    -40℃ ~ +85℃

    Power Consumption

    < 0.3w

    Pixel

    32*32 Real-time temperature output

    Measurement Accuracy

    I + 0.5℃

    Measuring Distance

    0.5 ~ 1.5m


    Face Recognition Device Details
