RJ45 PDF417 QR Code Reader Access Control Support TCP UDP HTTP
RJ45 TCP IP Newwork Wiegand 26/34 QR Code Access Control Reader

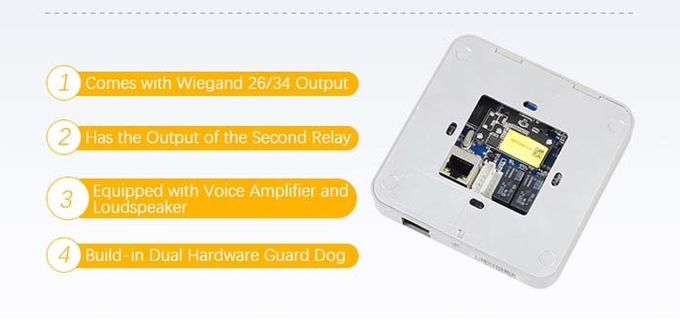

RD006 Access Control Barcode Scanner Description:
The product has Wiegand 26/ 34 output, when the product is used as
a 2d code reader, which can make
the traditional access control, ladder control, yard products, own
the 2d code access function immediately
without changing the main controller.Besides, RD006 has 2-channel
relay output, in addition to 1 channel
to control the door lock, other 1 channel to control the door
opener, lights, players, valves and so on.The
product has voice amplifier and speakers whose commonly used access
incidents can be set, the network
control play nearly 150 voices that can be
customized.
RD006 QR Access Control Device Features:
1. Barcode/QR Code reading is standard function, IC/Mifare card
reading is optional.
2. It can read both printed or mobile screen barcodes.
3. Free sdk and demo software.
4. Customizable audio.
5. With built-in access controller, and 2 replay output.
6. POE function can be added.
RD006 Parameters:
| 2D Code Engine Component Parameters |
| Image Sensor | 752X480 CMOS |
| Light Source | White LED |
| Symbologies | 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and
printed code |
| 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc. |
| Reading Distance | 10-55mm |
| Scan Angle | 360° Full Angle |
| Input and Output Parameters |
| Power Input | 9-18VDC |
| Working Current | < 600mA |
| Can read like ISO14443Aor ISO14443B card serial number | Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare
S50, Mifare S70 IC card), SRIX4K, etc. |
| Barcode or 2D code input | Wiegand 26/ 34 output, output IC card number (common read head
function) and associated card number output in compliance with QR
code reservation rules |
| Communication Interface | RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth |
| Communication Protocol | Support TCP / UDP / HTTP |
| Voice output | comes with voice, amplifier and speaker output, nearly 150 kinds of
voice output, customizable voice |
| Device input | 12V DC power input, 1 line gate input, 1 line exit button input, 1
line alarm input |
| Equipment output | 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can
control door opener, light, water valve, etc. |
| Wiegand output | Wiegand 26/34 output |
| Relay | 2 relay |
| Dimensions |
| Installation size | 152mm * 85mm * 35mm (L*W*H), Compatible with standard 86 box |
