RFID POE TCP IP Turnstile Qr Code Reader With Wiegand Output
RFID POE Wiegand TCP IP Turnstile Access Control QR Code Scanner
RD006 Access Control QR Code Scanner Description:
This single-door access control + 2d code scanner engine + the
second generation ID card reader three in one card products make
site installation and maintenance become simple with lower cost.
Besides, RD006 has 2-channel relay output, in addition to 1 channel
to control the door lock, other 1 channel to control the door
opener, lights, players, valves and so on. The product uses the
data memory and the ferroelectric memory, even if the device
suddenly power-down, it will not lose the stored data to ensure
data safe and reliable. Equipment capacity: card 35,000 pieces,
record 50,000 pieces, 2d code times 100,000, records and 2d code
times are automatically looped over capacity.
RD006 QR Access Control Device Features:
1. Barcode/QR Code reading is standard function, IC/Mifare card
reading is optional.
2. It can read both printed or mobile screen barcodes.
3. Free sdk and demo software.
4. Customizable audio.
5. With built-in access controller, and 2 replay output.
6. Wifi, Bluetooth, POE function can be added.
| Model Name | RD006 | RD008 |
| Processor | ARM+DSP core | ARM+DSP core |
| Memory | 85,000 people, 100,000 events | 85,000 people, 100,000 events |
| Verification Speed | QR code recognition <0.5S, card recognition <0.1S | QR code recognition <0.5S, card recognition <0.1S |
| Communication Method | TCP/IP access, expandable WIFI, bluetooth can be compatible | TCP/IP access, expandable WIFI, bluetooth can be compatible |
| Run Offline | Support offline operation | Support offline operation |
| Input and Output Ports | Control lock output, exit button and door sensor input, etc. | Control lock output, exit button and door sensor input, etc. |
| Security | Input overcurrent protection, instantaneous overvoltage protection | Input overcurrent protection, instantaneous overvoltage protection |
| Power/power Consumption | Voltage 12VDC, current <1A | Voltage 12VDC, current <1A |
| Working Environment | Humidity 5%~95%, temperature -20℃~60℃ | Humidity 5%~95%, temperature -20℃~60℃ |
| Weight | 300g | 400g |

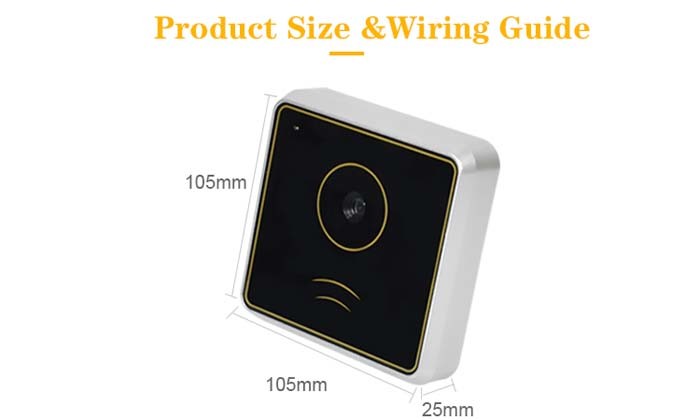

| Size | 105*105*25mm | 110*25*34.62mm |
| Relay | 2 relay | 1 relay |
| Material and Display | aluminum alloy Plastic with TFT display | RD008 has 1.8-inch TFT color screen, aluminum alloy round case |
| Standard | RJ45 TCP IP Wiegand output | RJ45 TCP IP(Weigand Optional ) |
| Optional | BT Wifi POE | BT Wifi |
