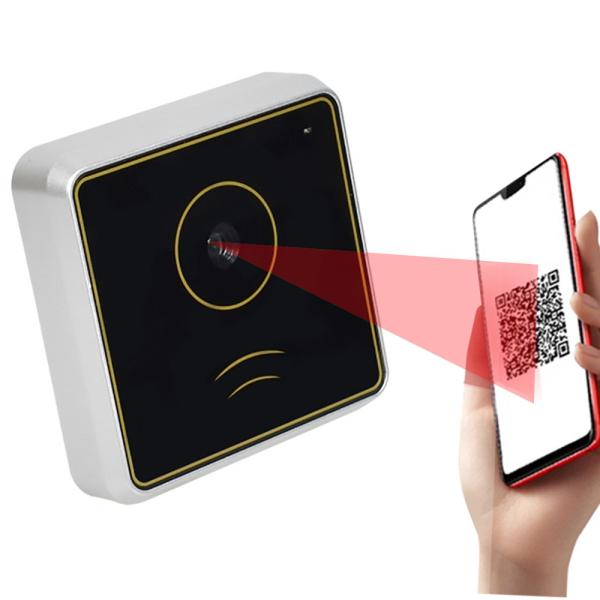

Rakinda RD006 Door Access Control Barcode Scanner QR IC Card Reader with Wiegand TCP IP HTTP

RD006 QR Code Access Control Devices.pdf

Features

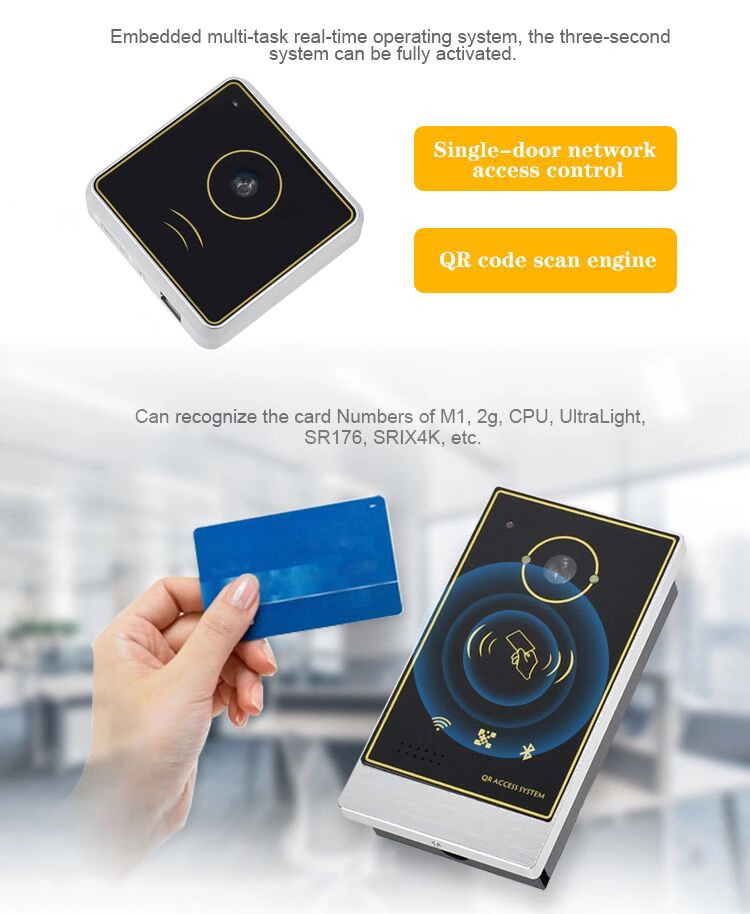

1.Embedded multitasking real-time operating system, system can be fully activated with 3 seconds.
2.Single-door access control + 2d code scanner engine + the second generation ID card reader three in one card products. Make site installation and maintenance become simple with lower cost.
3.The product has Wiegand 26/ 34 output, when the product is used as a 2d code reader, which can make the traditional access control, ladder control, yard products, own the 2d code access function immediately without changing the main controller. And can access legally when it must comply with the rules of the 2d code so that the traditional access control, ladder control and yard products have a real CPU system security level at once and reduce system costs greatly.
4.The product has 2-channel relay output, in addition to 1 channel to control the
door lock, other 1 channel to control the door opener, lights, players, valves and so on.
5.The product has voice amplifier and speakers whose commonly used access incidents can be set, the network control play nearly 150 voices that can be customized.

Input and Output Parameters:
1. Power Input: 9-18VDC
2. Working Current: < 600mA
3. Support ISO14443Aor ISO14443B card

4. Barcode or 2D code input.
5. Wiegand 26/ 34 output

6. Communication Interface: RJ45 10/100M TCP/IP, Extensible Wireless WIFI,Bluetooth
7. Communication Protocol: Support TCP / UDP / HTTP
8. Device input: 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input
10. Equipment output: 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener,

light, water valve, etc.

QR Code Access Control Devices Parameters:

Service Advantages

1.Professional service team, all-round one-to-one person follow-up.
2.Provide professional development kits to help customers solve various related software and hardware developing issues.
3.Two-year quality assurance, life-long maintenance and 24-hour service hotline guarantee the customers' interest.

We create a bright future with hand in hand and implement the business philosophy of customer first. Through continuous exploration and innovation, we aim to achieve win-win cooperation with customers in near future together!

Quality Advantages

1. The products are certified by CE of EU, FCC of USA and RoHS, and the quality is guaranteed.
2. Product components adopt international brand to ensure quality.
3. After 100% strict sampling inspection before products shipment, customers can take goods delivery with no worries at all.
