    RFID 2D QR Weigand RJ45 TCP IP Access Control System For Office GYM

    Ask Lasest Price
    Brand Name : Rakinda
    Model Number : RD008
    Certification : CE FCC ROHS
    Supply Ability : 1000pcs per month
    • Product Details
    • Company Profile

    RFID 2D QR Weigand RJ45 TCP IP Access Control System For Office GYM

    RFID 2D QR Weigand RJ45 TCP IP Access Control System For Office GYM

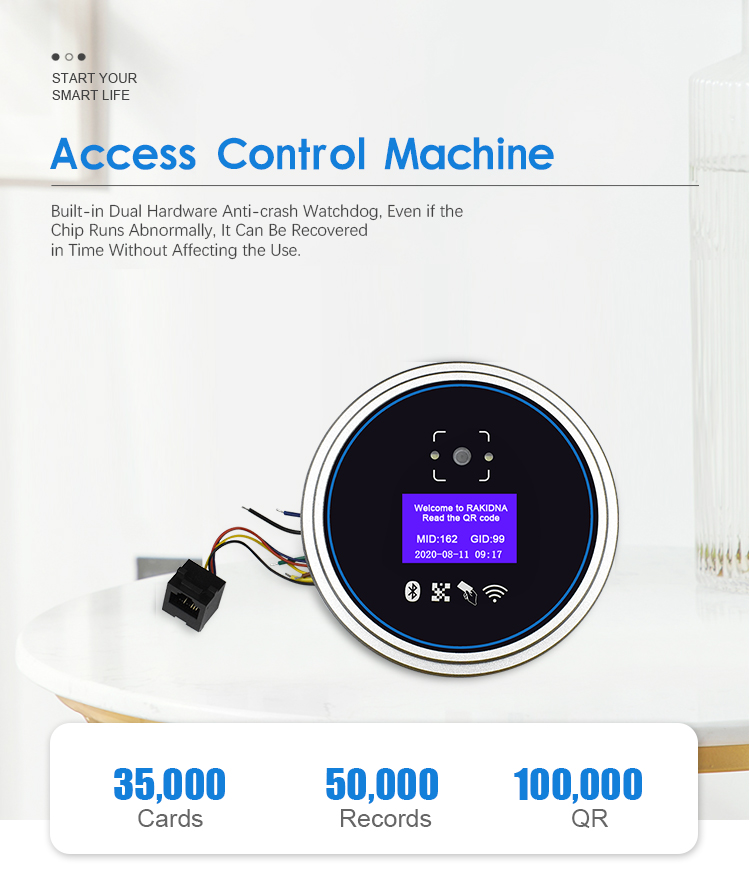

    9-18V RD008 RFID 2D QR Reader Weigand RJ45 TCP IP Access Control System for Office GYM
    Nowadays more and more Residential area, office area, factory using the access control device for managing the visitor visit. As it is more intelligent and more convenient. Our RD008 can read both Mifare card and QR code to get access. And Wifi and Bluetooth is optional. Its reading card region is very wide and can read card even in 20mm.
    Rakinda Keep pace with times and research and development on access control system: RD008 that using in many places. The product has wiegand 26/34 output when the product is used as 1D 2D code reader, It's a kind of access control using 2D barcodes scanning based on TCP / IP based network.It can read QR code and mifare card both.
    One of our customer from France who bought RD008 that using in gym has very good impression on it. RD008 access control integrated machine adopts self-developed core decoding technology, which has made special technical experience for mobile phone screen QR code recognition, easy identification Open the QR code, and timely save and update the data in the information management, it can grasp the entry and exit of the community personnel faster and more accurately.High security, versatility, stable quality, low failure rate, truly provide more convenient, more stable, safer and more efficient door opening services.


    Product Specifications:

    RD008 Round 2D IC Card Access Control Machine
    QR Code Scanning Component Parameters
    Image Sensor752X480
    Light SourceWhite LED
    Symbologies2D: PDF417, QR CODE, DATA MATRIX,Support Mobile Phone Mirror Recognition and Paper 2D Code Recognition
    1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.
    Reading Distance10-55mm
    Scan Angle360° Full Angle
    Display Components
    Screen1.8 ”TFT true color screen
    Resolution128 * 160
    Display Area28mmX35mm
    Input and Output Parameters
    Power Input9-18VDC
    Working Current< 600mA
    Can read like ISO14443Aor ISO14443B Card Serial NumberSuch as Second-generation ID card, FM1208 CPU Card, M1 Card (Mifare S50, Mifare S70 IC card), SRIX4K, etc.
    Barcode or 2D Code InputWiegand 26/34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules
    Communication InterfaceRJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth
    Communication ProtocolSupport TCP / UDP / HTTP
    Voice outputcomes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice
    Device Input12V DC power input, 1 door magnetic input, 1 door button input, 1 alarm input
    Equipment output1 channel 3A relay output, 1 channel unlock, 1 channel expansion can control door opener, light, water valve, etc.
    Wiegand outputWiegand 26/34 output
    Dimensions
    Installation size110mm * 25-34.62mm (L*H), Compatible with standard 86 box

    Good Comments:


    QUALITY CONTROL
    Our QC procedure and testing details are as following: Incoming material/component inspection (IQC) -- Quality inspection on production line (LQC) -- In-process quality control (IPQC)(several IPQC process) -- Final quality control (FQC) -- After packing inspection (QA) –- Shipment
    QUALITY CONTROL
    Our QC staffs have rich experience and are equipped with advanced equipment. In addition, our R&D department provides technical support to the entire production process. Besides strict supervision at every single stage of production, all the effort we are making is to ensure that our customers receive qualified products. The main goal of our organization is customer satisfaction through top-level product quality and continuous improvement of the service offered to our customers.
    QUALITY CONTROL
    Our aim of "your satisfaction, my pursuit" always remind us that quality is of key importance to provide customer satisfaction. Committed to providing customers with competitive prices, reliable quality, timely delivery, and good service, we wish to establish long-term business relationships with customers and friends all over the world. We manufacture and develop each product with heart and provide considerate service for you. Rakinda is always with you.
    RFID 2D QR Weigand RJ45 TCP IP Access Control System For Office GYM
    RFID 2D QR Weigand RJ45 TCP IP Access Control System For Office GYMRFID 2D QR Weigand RJ45 TCP IP Access Control System For Office GYM
    FAQ:
    Q: Can I get some samples? Are they free?
    A: We support 1pc sample order. Samples should be paid.
    Q: Can I get extra cables for the scanners?
    A: Yes you can. We will provide according to your request.
    Q: How can I buy?
    A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
    Q: What is your payment method?
    A: We accept online credit card, TT, Paypal, Western Union.
    Q: Can I visit your factory:
    A: Yes, you are warmly welcome.
    Q: How long is your warranty time:
    A: 1 Year.
    Q: Where can we download the user manual of the scanners?
    A: We will send by email after you get samples.
    Q: What's the lead time?
    A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
    Q: Can you provide OEM service?
    A: Yes. We need further discuss about details.
    Q: How do you ship the scanners usually?
    A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
