Product Features:
1.Embedded multi-tasking real-time operating system, the system can
be fully started in 3 seconds.

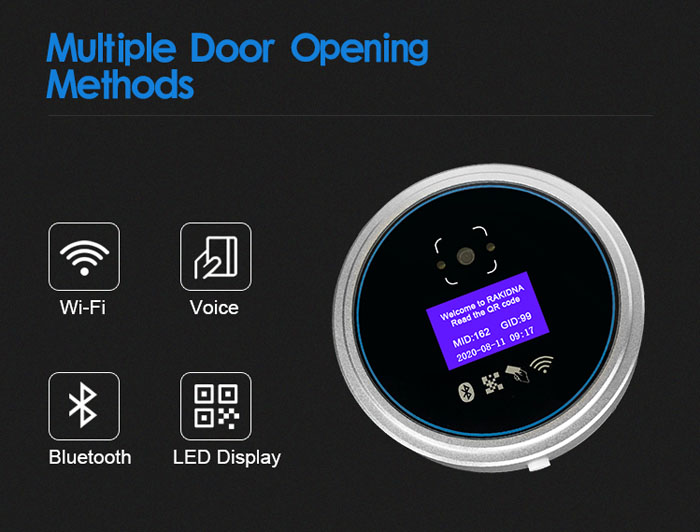

2.Single door network access control + QR code scanning head +IC
card reader triple product. Make the on-site installation and
maintenance simple and cost-effective.
3. The product comes with a voice amplifier and speaker. The voice
for common entry and exit events can be set. The network can
control nearly 150 voices and can customize the voice.
4. Encrypted QR code that complies with the agreed rules can be
opened / opened directly when not connected to the Internet.
The agreed rules mainly include:
(1)the start time and end time of the two-dimensional code valid;
(2)the number of times the two-dimensional code is valid and
exceeds the number of uses, the two-dimensional code can no longer
be used;
(3)equipment MAC matching or project number building number Match,
a QR code can contain one or more device numbers, which can be
legally valid on multiple devices;
(4)The encryption key of the QR code can be modified without
leaving any backdoors or loopholes to ensure the security of the QR
code.
5. Common parameters such as network IP parameters, lock delay,
Wiegand 26/34, etc. can be set directly through the QR code, making
site commissioning easier.
6. Equipment capacity: 35,000 cards, 50,000 records, 100,000 QR
codes, and records and QR codes exceeding the capacity will be
automatically covered.
7. The product adopts the battery-free clock holding circuit,
without batteries, eliminating the need to replace the battery
regularly, and the trouble of express delivery.
8. The product adopts data storage and ferroelectric storage. Even
if the device is suddenly powered off, the stored data will not be
lost, ensuring data security and reliability.
9. The product can read ISO14443A type card serial number or sector
content, such as M1 card.
10.The network transmission standard is RJ45 10 / 100M TCP / IP
transmission, which can be extended WIFI transmission or mobile
phone Bluetooth transmission.
11.Supports TCP / IP networking connection across gateways and
network segments, and direct-connected network cables and
cross-network cable controllers can automatically adapt.
12.Built-in dual hardware anti-crash watchdog, even if the chip
runs abnormally, it can be recovered in time without affecting the
use.
13.Support TCP / IP remote IAP upgrade. If there is a change in
requirements, after modifying the program, it can be completed
directly through the network upgrade.
14.The WIFI module can be extended to enable the two-dimensional
code to be transmitted over the wireless network through WIFI. The
WIFI module supports AP and STA dual modes.
15.The Bluetooth module can be extended to enable the product to
communicate with the mobile phone's Bluetooth. Achieve functions
such as shaking the door.
16.Integration of the development kit with the DEMO language: JAVA,
C #, C++, etc.
Product Specifications:
| RD008 Round 2D IC Card Access Control Machine |
| QR Code Scanning Component Parameters |
| Image Sensor | 752X480 |
| Light Source | White LED |
| Symbologies | 2D: PDF417, QR CODE, DATA MATRIX,Support Mobile Phone Mirror
Recognition and Paper 2D Code Recognition |
| 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc. |
| Reading Distance | 10-55mm |
| Scan Angle | 360° Full Angle |
| Display Components |
| Screen | 1.8 ”TFT true color screen |
| Resolution | 128 * 160 |
| Display Area | 28mmX35mm |
| Input and Output Parameters |
| Power Input | 9-18VDC |
| Working Current | < 600mA |
| Can read like ISO14443Aor ISO14443B Card Serial Number | Such as Second-generation ID card, FM1208 CPU Card, M1 Card (Mifare
S50, Mifare S70 IC card), SRIX4K, etc. |
| Barcode or 2D Code Input | Wiegand 26/34 output, output IC card number (common read head
function) and associated card number output in compliance with QR
code reservation rules |
| Communication Interface | RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth |
| Communication Protocol | Support TCP / UDP / HTTP |
| Voice output | comes with voice, amplifier and speaker output, nearly 150 kinds of
voice output, customizable voice |
| Device Input | 12V DC power input, 1 door magnetic input, 1 door button input, 1
alarm input |
| Equipment output | 1 channel 3A relay output, 1 channel unlock, 1 channel expansion
can control door opener, light, water valve, etc. |
| Wiegand output | Wiegand 26/34 output |
| Dimensions |
| Installation size | 110mm * 25-34.62mm (L*H), Compatible with standard 86 box |
