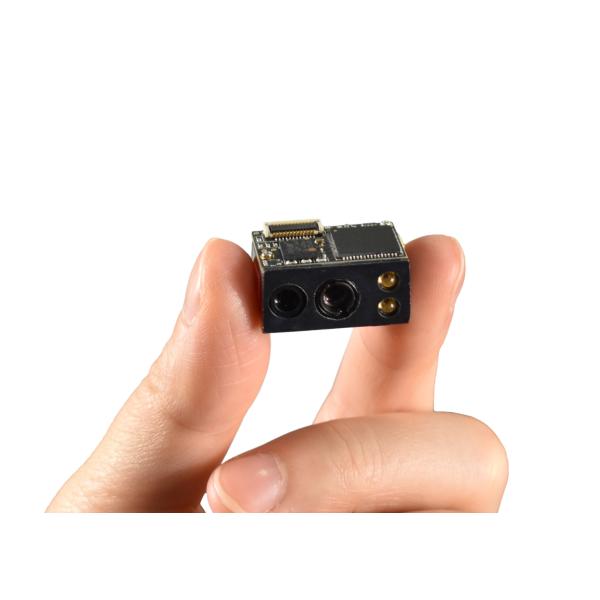

    Bus Pos Terminal QR Code Scanner Module IOTC Chip Processor 200 Scans / Sec

    Ask Lasest Price
    Brand Name : Rakinda
    Model Number : LV3096 Scan Engine
    Certification : CE FCC ROHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 1000 piece for a week
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

    Bus Pos Terminal QR Code Scanner Module IOTC Chip Processor 200 Scans / Sec

    Bus Pos Terminal QR Code Scanner Module IOTC Chip Processor 200 Scans / Sec


    1. The LV3096 supports all mainstream 1D as well as PDF417, QR Code (M1/M2/Micro), Data Matrix and GS1-DataBarTM(RSS) (Limited/ Stacked/ Expanded versions).

    2. The LV3096 can communicate with the host device via its TTL-232 port. This interface is applicable to most system architecture. For those requiring RS-232, a TTL-232 to RS-232 conversion circuit is needed.

    3. Includes Core-Technolgy UIMG, which is independently designed and manufactured by Longview Auto-ID. UIMG, digitizer, decoder, image processing & embedded systems. The scanner supports all global standard 1D barcode symbologies. Its’ reading performance reaches and exceeds global standards. By using the accessories provided, the user can ideally set up the scanner to its user environment.


    ModelLV3096 barcode readerr
    Sample priceNegotiated
    Scan RateUp to 300 scans/sec
    ProcessorIOTC 2D decoder chip 48MHz
    Decode Rate200 scans/sec
    Reading Resolution5mil
    Light SourceRed LED 625±10 nm
    Ambient Light0 ~ 100,000 LUX
    Depth of scan field3--70cm
    Print Contrast Signal≥30%PCS
    Power Consumption0.76W(max)
    NotificationBeep
    Dimensions21.17(W)×14.6(D)×11.52(H)mm
    Weight5g
    StorageTemperature-40°C - +80°C
    Humidity5% - 95% (non-condensing)
    CertificatesFCC Part15 Class B, CE EMC Class B


    Service:

    Before ordering, we will provide technology consulting, operation and demonstration services and other suggention according to your application requirements.

    We offer technical support to you by phone or online communication and help you solve problems such as testing, installation.

    Response to your quesetion will be given within 24 working hours and your problem will be solved as soon as possible.

    As one of the leading suppliers in IoT (Internet of Things), RAKINDA, oriented by clients demand, is devoted to the development and innovation of intelligent firmware products and enjoys rich experience and resources in IoT and the big data area.


    Q1: Warranty time?

    A7: 1 year

    Q2: Do you provide EVK for barcode scanner module?

    A8: Yes,but not free.

    Q3: Product OEM?

    A9: Yes, the cost need to be added separately.

    Q4: Customer service?

    A10: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.


    Action Now!!!

    Wood Zhang
    Shenzhen Longview Technology Development Co., Ltd.
    Address: 5F bldg. A2, Lilang Software Park, No., 31 Bulan Rd, Longgang Dist., Shenzhen City, China
    SKYPE: Wood Rakinda
