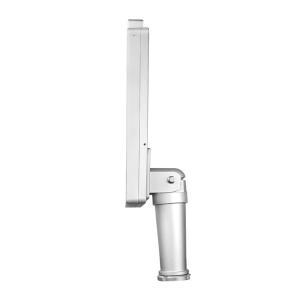

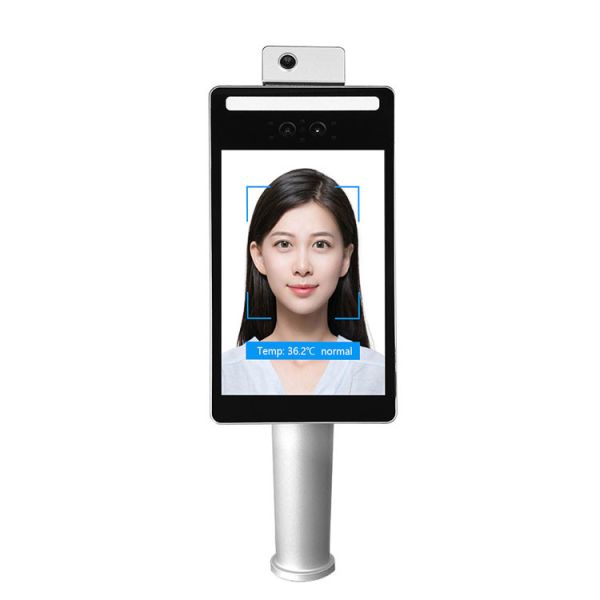

F2-TH Face Temperature Recognition System with Infrared IP Camera and TOF Camera

F2-TH Temperature Facial Terminal Datasheet-EN.pdf

Face Temperature Measurement Terminal Features
*Dynamic detection, solve the deception of photos on various carriers
*Recognition Height:1.2-2.2m
*Recognition Distance:0.3-1.2m
*Detection Rate:1-2sec/person-time
*Precision:± 0.5 ℃
*Support external QR code scanner, ID card reader
*Support RS232 serial port, Wiegand 26 output, support configuration of output content
*Adopting dynamic face detection and tracking recognition algorithm based on video stream
*Support storage of 30,000 libraries locally；
*Fast recognition:
*(a)Face tracking and detection takes about 20ms
*(b)Face feature extraction takes about 200ms
*( c) The live detection face comparison takes 0.6ms (1000 people library, average value for multiple recognition), 0.8ms (10000 people library, average value for multiple recognition)
*Support public network and local area network
*Support HTTP interface connection;
*Support screen display content configuration, status display, custom content display, custom broadcast conten

Product Parameters

Face Recognition Integrated terminal
Product Model		F2-TH
Size		8 inch, full viewing angle, 170 degree IPS LCD screen
Screen Resolution		800*1200
Camera	Type	RGB	Infrared
	Resolution	2 million pixels
	Aperture	F2.8
	Focal Length	3.18mm
	White Balance	Automatic
	Wide Dynamic	Support
	Vertical Wide Angle
	Horizontal Wide Angle
Basic specifications	Operating System	Android7.1 or above
	Equipment Power	DC12V(±10%)3A
	Equipment Power Consumption	15w MAX
	Relative Humidity	0% ¨ 90%(In a non-condensing state )
	Operating Temperature	-20 ~60(Wall-mounted design: the junction with the eight or six boxes is not waterproof, and a ceiling is required)
	Protection Cass	IP55
	Use Environment	Indoor/Ourdoor
	Equipment Size	275.2mm*123.2mm*30.2mm
Hardware Configuration	Identification Method	Brush Face
		Mifare card (optional: external purchase module required)
		Resident ID card (optional: external purchase module required)
	Face recognition parameters	Face verification accuracy >99%
		Face recognition distance 0.5m-1.5m
		Face ID card comparison time 600MS
		Local capacity 20,000 sheets
	Port	Micro USB 1pcs
		RJ45 Gigabit 1pcs
		Relay, Wiegand Interface, RS-485,Door Sensor, Door Switch
	Support	Infrared/White Fill Light,
Basic Parameters	Indicator Light	Support authentication success, Green light prompt; Authentication failure, Red light prompt
	WIFI	2.4G 802.11b/g/n
	Bluetooth	Bluetooth4.0
	4G LTE	Full Netcom (optional: custom purchase required)
Temperature Measurement Module	Operating Temperature	-20℃ ~ +85℃
	Storage Temperature	-40℃ ~ +85℃
	Power Consumption	< 0.3w
	Pixel	32*32 Real-time temperature output
	Measurement Accuracy	I + 0.5℃
	Measuring Distance	0.5 ~ 1.5m

Application Scenario

It is suitable for thousands of people's office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public services and management projects that require face access control

Service Advantages

1.Professional service team, all-round one-to-one person follow-up.
2.Provide professional development kits to help customers solve various related software and hardware developing issues.
3.Two-year quality assurance, life-long maintenance and 24-hour service hotline guarantee the customers' interest.

We create a bright future with hand in hand and implement the business philosophy of customer first. Through continuous exploration and innovation, we aim to achieve win-win cooperation with customers in near future together!

Quality Advantages

1. The products are certified by CE of EU, FCC of USA and RoHS, and the quality is guaranteed.
2. Product components adopt international brand to ensure quality.
3. After 100% strict sampling inspection before products shipment, customers can take goods delivery with no worries at all.
