    LV3096 Arduino barcode scanner module 0.76W 5mil Reading Precision

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : LV3096
    Certification : FCC,CE,Rosh
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 9999 pcs per month
    • Product Details
    • Company Profile

    LV3096 Arduino barcode scanner module 0.76W 5mil Reading Precision

    LV3096 Arduino barcode scanner module 0.76W 5mil Reading Precision​


    1. 2D Barcode Decoder Chip: The engine armed with the state-of-the-art 2D barcode decoder chip invented by demonstrates unprecedented reading performance.

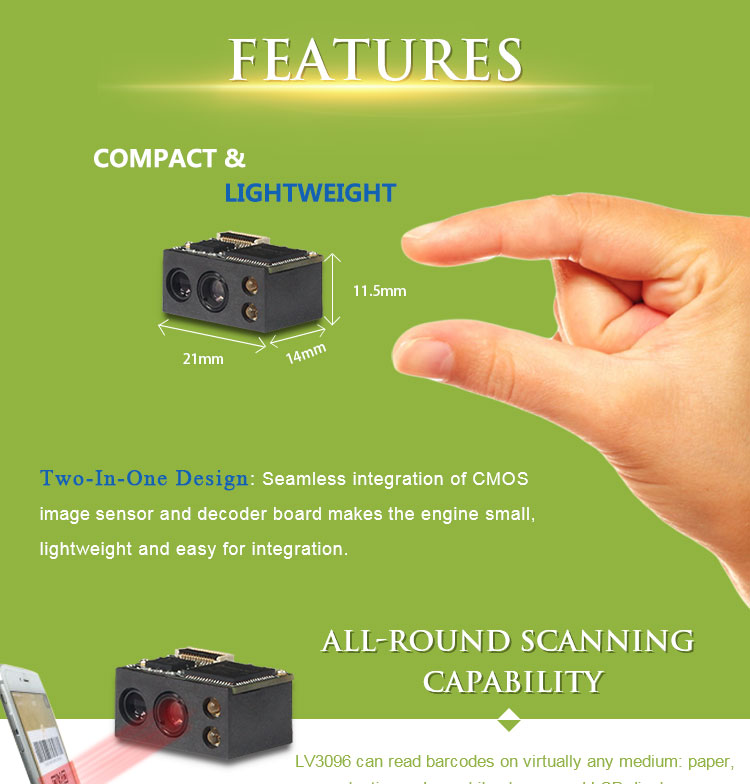

    2. Two-In-One Design: Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easy for integration.
    3. High Performance & Ultra-Low Power Consumption: The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.
    4. All-Round Scanning Capability: It can read barcodes on virtually any medium - paper, plastic cards, mobile phones and LCD displays.

    LV3096 2qr code barcode scanner reader

    Performance
    Image Sensor752×480 CMOS
    ProcessorNewland IOTC 2D decoder chip 48MHz
    IlluminationRed LED 625±10 nm
    Symbologies2DPDF 417, Data Matrix(ECC200,ECC000,050,080,100,140), QR Code
    1DCode 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
    Reading Precision≥ 5mil
    Depth of Field*EAN13 (13mil)55mm - 185mm
    Code 39 (5mil)55mm - 100mm
    PDF 417 (6.67mil)40mm - 130mm
    Data Matrix (10mil)40mm - 135mm
    QR Code (15mil)40mm - 160mm
    Symbol Contrast≥ 30% reflectance difference
    Scan Angle**Roll: 360°, Pitch: ±55°, Skew: ±55°
    Field of ViewHorizontal 36°; Vertical 23°
    Mechanical/Electrical
    InterfaceTTL-232, USB (optional)
    Rated Power Consumption0.76 W
    Operating Voltage3.3±10% VDC
    Current @ 3.3 VDCOperating Current230 mA
    Standby Current4mA (USB communication not supported); 7mA (USB communication supported)
    Sleep Current<5 uA
    Dimensions21.17(W)×14.6(D)×11.52(H)mm
    Weight5.0g
    Environmental
    Operating Temperature-20℃~ +60℃
    Storage Temperature-40℃~ +80℃
    Humidity5% ~ 95% (non-condensing)
    Ambient Light0 ~ 100000 lux (natural light)
    Certifications
