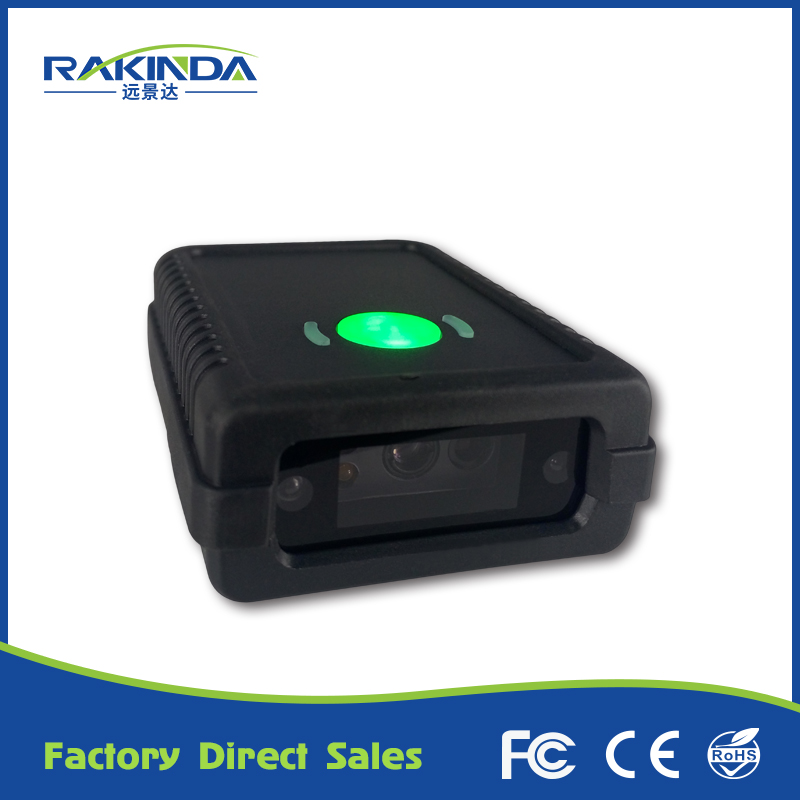

RS-232 Interface Arduino Barcode Scanner Module Auto Sense 5mil
Reading Precision
Item number: LV3096R
nterface: USB/ RS232
Product size: 69.46(L)×48.11(W)×22.15(H)mm
Symbols: 1D&2D [ PDF417, Data Matrix (ECC200, ECC000, 050, 080,
100, 140), QR Code ]
Operating temperature: -20℃±60℃
Advantages:
1. LV3096R is able to scan both printed and mobile phone screen
1D/2D barcodes.
2. Integration of both automatical reading and mannual trigger.
3. Low power consumption, sleep current is less than 6uA.
4. LV3096R is able to read through glass.
The LV3096R new generation barcode scaner, with fixed mount and
compact design, its suitable for all kinds of Kiosk, ATM, ticket
terminal, medical device, POS and PDA for embedded use.
The barcode scaner module readable most 1D barcodes and 2D barcodes
such as QR code, PDF417 code, Data Matrix, also with high
performance for reading codes from paper.
Technical Specifications of LV3096R 2D Code Scan Engine
| Product name | 2D Code Scan Engine |
| Item number | LV3096R |
| Processor | IOTC 2D decoder chip 48MHz |
| Interface | RS232/ USB |
| Image Sensor | 752× 480 CMOS |
| Symbologies | 2D: PDF417, Data Matrix, QR Code
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of
5, Code 11,
Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. |
| Reading Precision | ≥ 5mil |
| Depth of Field* | EAN13 (13mil) 55mm - 185mm; Code 39 (5mil) 55mm - 100mm; PDF 417 (6.67mil) 40mm - 130mm; Data Matrix (10mil) 40mm - 135mm; QR Code (15mil) 40mm - 160mm |
| Symbol Contrast | ≥ 30% reflectance difference |
| Scan Angle** | Roll: 360° Pitch: ±55° Skew: ±55° |
| Field of View | Horizontal 36°; Vertical 23° |
| Ambient Light | 0 ~ 100,000 LUX (natural light) |
| Rated Power Consumption | 0.79W |
| Operating Voltage | 5VDC |
| Dimensions | 69.46(L)*48.11(W)*22.15(H)mm |
| Current @ 5 VDC | Operating Current 240 mA; Sleep Current <5.15 uA |
| Weight | 80g |
| Operating Temperature | -20 ℃ to + 60 ℃ |
| Storage Temperature | -40 ℃ to + 80 ℃ |
| Humidity | 5% - 95% ( non-condensing ) |
| Certification | FCC Part15 Class B, CE EMC Class B |
Barcode Scanner FAQ
Q1: Can I get some samples? are they free?
A1: Of course, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order,sample could be
sent to you in 3 work days after receiving balance.
Q3: What about payment?
A3: Payment terms: T/T,West Union and L/C etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld
Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID
Scanner, POS Terminal, Android Mainboard etc.
Q5: What's the OS of the POS?
A5: Android and Windows,details please refer to the technical data
of the Product.
Q6: Where can we download the SDK/user manual for some of your
products?
A6: SDK/User manual will be sent to you by email after the sample
order.
Q7: Warranty time?
A7: 1 year
Q8: Do you provide Evaluation Kit for testing barcode scanner
module?
A8: Yes, but you need to pay for EVK separately.
Q9: Product OEM?
A9: Yes, but it requiries the certain MOQ and the cost need to be
added separately.
Q10: Customer service?
A10: Any questions of product after your receipt, please contact
us,we'll reply you in 24 hours.
