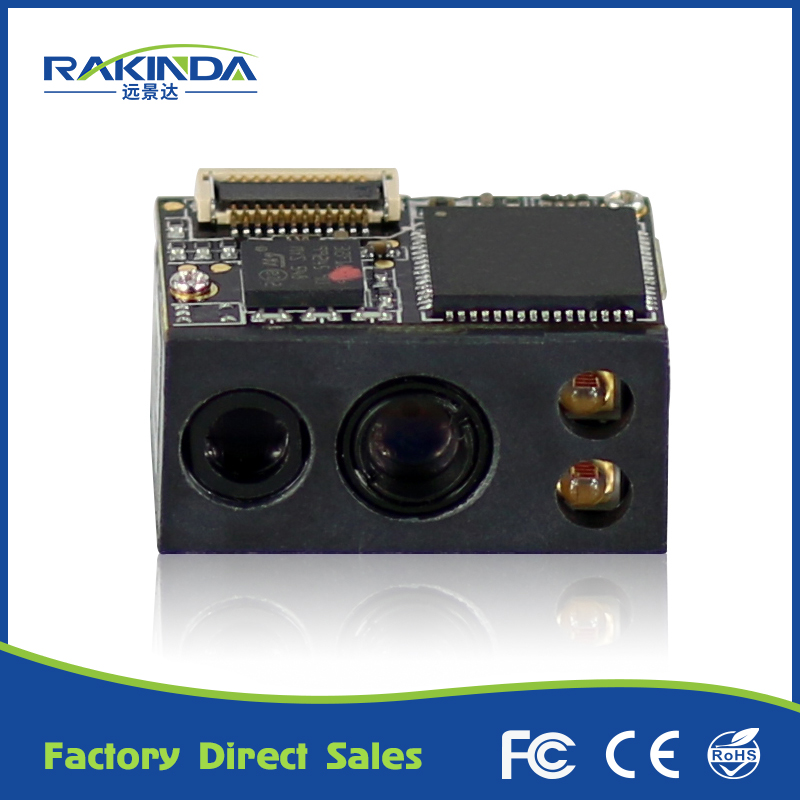

    Android PDA QR Code Barcode Scanner CMOS Reading Mode 21.17×14.6×11.52 mm

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : LV3096
    Certification : CE, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 1000 PCS/ week
    Delivery Time : within 5 working days after receiving the balance
    • Product Details
    • Company Profile

    Android PDA QR Code Barcode Scanner CMOS Reading Mode 21.17×14.6×11.52 mm

    Android PDA QR Code Barcode Scanner CMOS Reading Mode 21.17×14.6×11.52 mm​


    The LV 3096 provides a TTL-232 interface and a USB interface (optional) to communicate with the host device. The host device can receive scanned data and send commands to control the engine or to access/alter the configuration information of the engine via the interface.


    Illumination

    The LV 3096 has two red LEDs for supplementary lighting, making it possible to scan barcodes even in
    complete darkness. The illumination can be programmed On or Off.
    The LV3096 uses red LEDs for illumination, so the engine shows better reading performance on
    barcodes printed in non-red colors. For applications involving red barcodes, it is advised to turn off the
    engine’s illumination and use non-red supplementary lighting (such as green) instead. The user can
    conduct some tests to determine the proper wavelengths to be used.



    Technical Specifications of LV3096 2D Barcode Scanner Module

    Performance
    Image Sensor752×480 CMOS
    ProcessorRakinda IOTC 2D decoder chip 48MHz
    IlluminationRed LED 625±10 nm
    Symbologies2DPDF 417, Data Matrix(ECC200,ECC000,050,080,100,140), QR Code
    1DCode 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
    Reading Precision≥ 5mil
    Depth of Field*EAN13 (13mil)55mm - 185mm
    Code 39 (5mil)55mm - 100mm
    PDF 417 (6.67mil)40mm - 130mm
    Data Matrix (10mil)40mm - 135mm
    QR Code (15mil)40mm - 160mm
    Symbol Contrast≥ 30% reflectance difference
    Scan Angle**Roll: 360°, Pitch: ±55°, Skew: ±55°
    Field of ViewHorizontal 36°; Vertical 23°


    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
