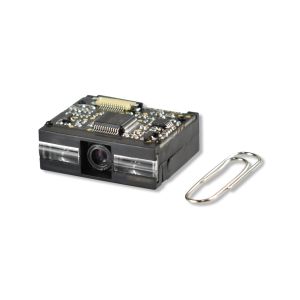

LV1000 Automatical Wireless Handheld Barcode Scanner 5Mil
Resolution
1. DECODE ZONE
The View angle of the camera is 36' ,it shows the fields of the
view at different distances.
2. MALL DESIGN
Small Design allowing easy integration into OEM equipments and
sytems
3. FAST SCANNING
High performace cpu ensuring fast and accurate scans. fast scanning
and decoding accuracy,Barcodes rotated at any angle can still be
read with easy.ECODE ZONE
the View angle of the camera is 36',it shows the fields of the view
at different distances.
| Model | LV1000 |
| Interface | TTL232 |
| Scan Rate | Up to 300 scans/sec |
| Image Sensor | CCD |
| Decode Rate | 200 scans/sec |
| Resolution | 5mil |
| Light Source | LED(622nm-628nm) |
| Ambient Light | 0 ~ 100,000 LUX |
| Depth of scan field | 40mm-430mm |
| Print Contrast Signal | ≥30% |
| Power Consumption | 0.33W(max) |
| Notification | Beep |
| Dimensions | 28.2L×23.4W×11.2Hmm |
| Weight | 6g |
| Operating Temperature | -20°C - +60°C |
| Humidity | 5% - 95% (non-condensing) |
| Certificates | FCC Part15 Class B, CE EMC Class B |
|
|
Interface Socket
LV1000 uses a 12-pins flex cable socket to interface with external
device (Host), such as EVK 3000 V2, the LV1000 Evaluation Kit. The
flowing picture shows the sockeet. For reference purpose, the LV
1000 Evaluation Kit uses a connector to connect the flex cable.
