Mobile Payment Auto Fixed Mount Barcode Scanner 2D Barcode Engine With Square Image Sensor

    Buy cheap Mobile Payment Auto Fixed Mount Barcode Scanner 2D Barcode Engine With Square Image Sensor from wholesalers

    Buy cheap Mobile Payment Auto Fixed Mount Barcode Scanner 2D Barcode Engine With Square Image Sensor from wholesalers
    • Buy cheap Mobile Payment Auto Fixed Mount Barcode Scanner 2D Barcode Engine With Square Image Sensor from wholesalers
    • Buy cheap Mobile Payment Auto Fixed Mount Barcode Scanner 2D Barcode Engine With Square Image Sensor from wholesalers

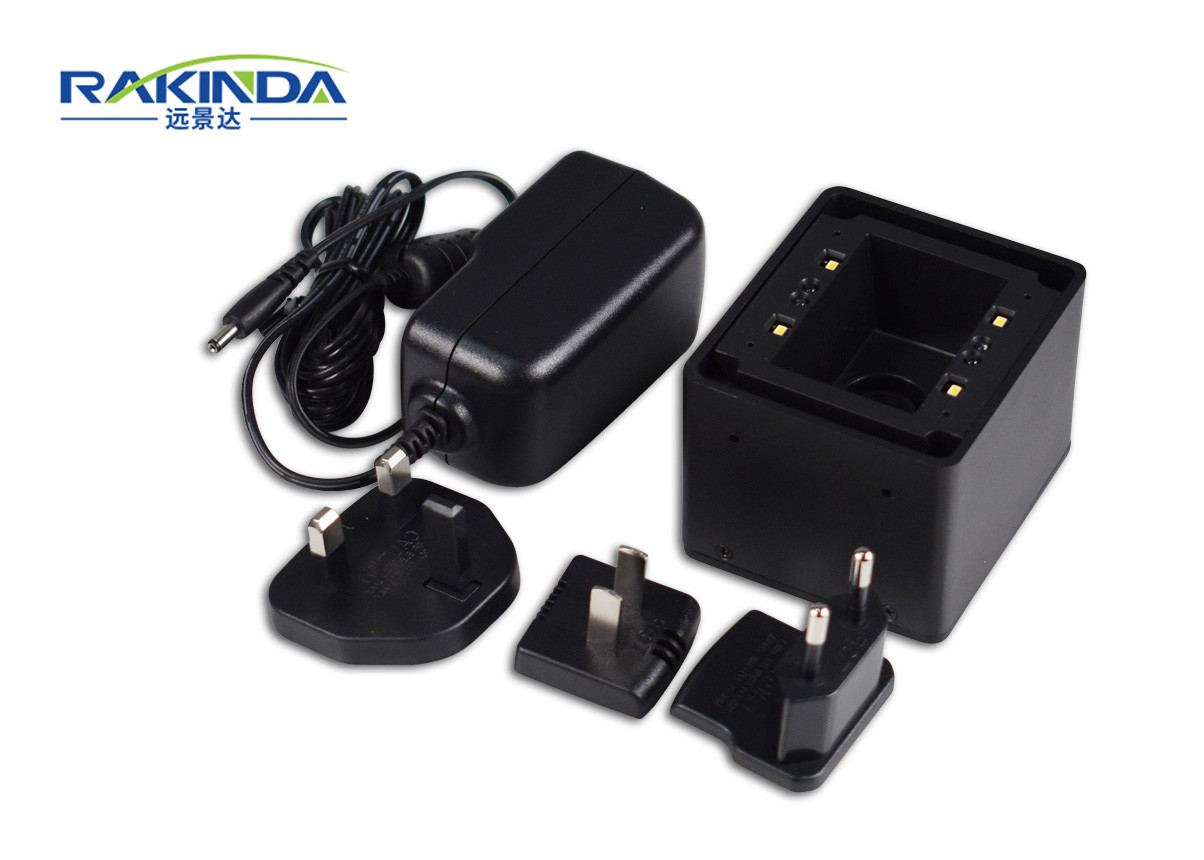

    Mobile Payment Auto Fixed Mount Barcode Scanner 2D Barcode Engine With Square Image Sensor

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : RD4500I
    Certification : FCC Part15 Class B, CE EMC Class B
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 1000 PCS/ week
    Delivery Time : within 5 working days after receiving the balance
    • Product Details
    • Company Profile

    Mobile Payment Auto Fixed Mount Barcode Scanner 2D Barcode Engine With Square Image Sensor

    Mobile Payment Auto Fixed Mount Barcode Scanner 2D Barcode Engine With Square Image Sensor


    2D scanners and barcode readers:

    2D engine offer the latest technology in terms of barcode scanning available today. 2 Dimensional barcodes allow more information to be encoded and arranged in a smaller area using 2D barcodes made up of squares, dots or other symbols. 2D barcode readers can also read traditional 1D barcodes or linear barcodes. As a result they are gaining popularity and are viewed as an investment due to their versatility and future-proof technology. 2D scanners can also scan any barcodes from the mobile or tablet or any screens.


    Features

    1. Intelligent Multi-Interface Design: Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with automatic interface detection.

    2. The 2D image scanner quality Mobile Phone Reading: Easily scans bar codes directly from mobile device or computer screens, almost as if they were printed on paper Compatible Remote Master Mind remote device

    Technical Specifications of RD4500I Auto 2D Barcode Reader Module

    Performance
    ProcessorIOTC 0370 CHIP
    Image Sensor752×480 CMOS
    InterfaceRS-232/ USB
    Symbologies2DPDF417, Data Matrix, QR Code
    1DEAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
    Scan ModeSense mode
    Precision10mil
    Light SourceWhite LED
    Scan Window38.3mm×60.4mm
    PCS≥30%
    FOVDiagonal: 85°, Horizontal: 63.7°, Vertical: 70°
    Mechanical/Electrical
    Power Consumption1.75W (max.)
    NotificationBeep
    Dimensions (L x W x H)71×61×50mm
    Weight280g
    Environmental
    Operating Temperature-10°C - +50°C
    Storage Temperature-20°C - +60°C
    Humidity5% - 95% (non-condensing)
    Ambient Light0 ~ 100,000 LUX
    Certifications
    FCC Part15 Class B, CE EMC Class B

    Mobile Payment Auto Fixed Mount Barcode Scanner 2D Barcode Engine With Square Image Sensor


    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
